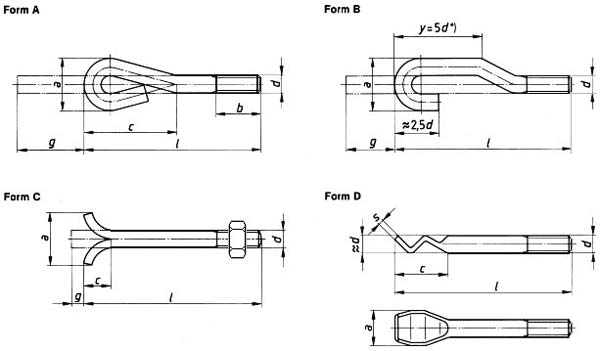

| d | p | a | c | b | ||
|---|---|---|---|---|---|---|
| min. | max. | min | max | |||
| M8 | 1 | 21 | 27 | 40 | 50 | 20 |
| M10 | 1 | 27 | 33 | 50 | 60 | 25 |
| M12 | 1.75 | 33 | 39 | 60 | 70 | 30 |
| M16 | 2 | 45 | 51 | 80 | 90 | 40 |
| M20 | 2.5 | 57 | 63 | 100 | 110 | 50 |
| M24 | 3 | 72 | 78 | 120 | 130 | 60 |
| M30 | 3.5 | 92 | 98 | 150 | 160 | 75 |
| M36 | 4 | 112 | 118 | 185 | 195 | 90 |
| M42 | 4.5 | 132 | 138 | 215 | 225 | 105 |
| M48 | 5 | 152 | 158 | 245 | 255 | 120 |
| M56 | 5.5 | 177 | 183 | 285 | 295 | 140 |
| M64 | 6 | 197 | 203 | 330 | 340 | 160 |
| M72 | 6 | 237 | 243 | 365 | 375 | 180 |
