DIN 444 Type A Eye Bolts
DIN 444 Type A Eye Bolts

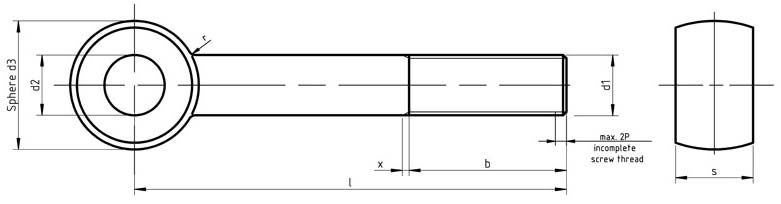

DIN 444 Dimensions for Type A Eye Bolts
d1
b L≤125
b L>125≤200
b L>200
d2 H9
d3 max
s max
M5
16
-
-
5
12
8
M6
18
-
-
6
14
9
M8
22
28
-
8
18
11
M10
26
32
-
10
20
14
M12
30
36
49
12
25
17
M16
38
44
57
16
32
19
M20
46
52
65
18
40
24
M24
54
60
73
22
45
28
M30
66
72
85
28
55
34
