UNI 5925 Hexagon socket set screws with full dog point
UNI 5925 Hexagon socket set screws with full dog point

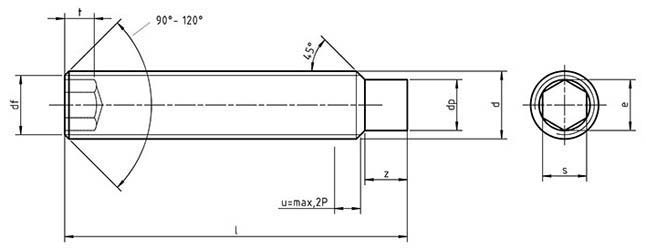

Dimensions for UNI 5925 Hexagon socket set screws with full dog point
d
dp
t
s
M 3
2
1.2
1.5
M 4
2.5
1.5
2
M 5
3.5
2
2.5
M 6
4
2
3
M 8
5.5
3
4
M 10
7
4
5
M 12
8.5
4.8
6
M 16
12
6.4
8
M 20
15
8
10
M 24
18
10
12
