ASME B18.31.5 Round Bend U Bolts

ASME B18.31.5 Round Bend U Bolts

ASME B18.31.5 Round Bend U Bolts

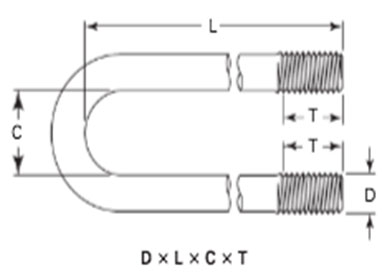

Dimensions of ASME B18.31.5 Round Bend U Bolts

Pin Fields Diameter D, and UNC Thread Inside Length, L Inside Width, C Thread Length, T Nominal Pipe Size
3,D 5, LCT Basic Max Min Basic Max Min Max Min
04 012 1/4 - 20 1.250 1.280 1.220 0.563 0.593 0.533 0.810 0.690 1/4
04 013 1/4 - 20 1.250 1.280 1.220 0.750 0.780 0.720 0.685 0.565 3/8
04 022 1/4 - 20 2.250 2.280 2.220 0.750 0.780 0.720 1.560 1.440 3/8
04 017 1/4 - 20 1.750 1.780 1.720 1.000 1.030 0.970 1.060 0.940 1/2
04 020 1/4 - 20 2.000 2.030 1.970 1.000 1.030 0.970 1.060 0.940 3/4
04 031 1/4 - 20 3.125 3.155 3.095 1.000 1.155 0.970 1.560 1.440 3/4
04 023 1/4 - 20 2.250 2.280 2.220 1.125 1.155 1.095 1.310 1.190 3/4
04 027 1/4 - 20 2.750 2.780 2.720 1.125 1.155 1.095 1.435 1.315 1
04 034 1/4 - 20 3.438 3.468 3.408 1.125 1.280 1.095 2.435 2.315 1
04 030 1/4 - 20 3.000 3.030 2.970 1.250 1.280 1.220 1.435 1.315 1 1/4
04 032 1/4 - 20 3.250 3.280 3.220 1.250 1.405 1.220 1.435 1.315 1 1/2
05 021 5/16 - 18 2.188 2.218 2.158 1.375 1.405 1.345 1.435 1.315 1/2
05 0222 5/16 - 18 2.188 2.218 2.158 1.375 1.530 1.345 1.060 0.940 3/4
05 023 5/16 - 18 2.188 2.218 2.158 1.500 1.530 1.470 1.060 0.940 1
05 026 5/16 - 18 2.688 2.718 2.658 1.500 1.780 1.470 1.185 1.065 1 1/4
05 045 5/16 - 18 4.500 4.530 4.470 1.750 1.780 1.720 2.060 1.940 1 1/4
05 027 5/16 - 18 2.688 2.718 2.658 1.750 1.780 1.720 1.060 0.940 1 1/2
05 047 5/16 - 18 4.750 4.780 4.720 1.750 1.780 1.720 3.060 2.940 1 1/2
05 032 5/16 - 18 3.188 3.218 3.158 1.750 2.030 1.720 1.060 0.940 2
05 056 5/16 - 18 5.625 5.685 5.565 2.000 2.030 1.970 3.060 2.940 2
05 037 5/16 - 18 3.688 3.718 3.658 2.000 2.030 1.970 1.060 0.940 2 1/2
06 022 3/8 - 16 2.250 2.280 2.220 2.000 2.030 1.970 1.310 1.190 1/2
06 023 3/8 - 16 2.250 2.280 2.220 2.000 2.030 1.970 1.310 1.190 3/4
06 025 3/8 - 16 2.500 2.530 2.470 2.500 2.530 2.470 1.310 1.190 1
06 027 3/8 - 16 2.750 2.780 2.720 2.500 2.530 2.470 1.185 1.065 1 1/4
06 026 3/8 - 16 2.625 2.655 2.595 2.500 2.530 2.470 1.310 1.190 1 1/2
06 031 3/8 - 16 3.125 3.155 3.095 3.000 3.030 2.970 1.310 1.190 2
06 036 3/8 - 16 3.625 3.655 3.595 3.000 3.030 2.970 1.310 1.190 2 1/2
06 066 3/8 - 16 6.625 6.685 6.565 3.000 3.030 2.970 3.060 2.940 2 1/2
06 041 3/8 - 16 4.125 4.155 4.095 3.000 3.030 2.970 1.310 1.190 3
06 055 3/8 - 16 5.500 5.560 5.440 3.500 3.530 3.470 2.310 2.190 3 1/2
08 045 1/2 - 13 4.500 4.530 4.470 3.500 3.530 3.470 1.685 1.565 2 1/2
08 050 1/2 - 13 5.000 5.060 4.940 3.500 3.530 3.470 1.560 1.440 3
08 085 1/2 - 13 8.500 8.590 8.410 4.000 4.030 3.970 3.060 2.940 3
08 055 1/2 - 13 5.500 5.560 5.440 4.000 4.030 3.970 1.560 1.440 3 1/2
08 060 1/2 - 13 6.000 6.060 5.940 4.500 4.530 4.470 1.560 1.440 4
08 072 1/2 - 13 7.250 7.310 7.190 5.625 5.685 5.565 2.060 1.940 5
08 084 1/2 - 13 8.375 8.465 8.285 6.750 6.810 6.690 2.060 1.940 6
08 104 1/2 - 13 10.375 10.465 10.285 8.750 8.840 8.930 2.060 1.940 8
12 138 3/4 - 10 13.813 13.933 13.693 10.875 10.965 11.055 4.060 3.940 10
14 161 7/8 - 9 16.063 16.183 15.943 12.875 12.995 12.755 4.310 4.190 12
14 173 7/8 - 9 17.313 17.433 17.193 14.125 14.245 14.005 4.310 4.190 14
14 193 7/8 - 9 19.313 19.193 19.193 16.125 16.245 16.005 4.310 4.190 16
16 217 1 - 8 21.688 21.568 21.568 18.125 18.245 18.005 4.810 4.690 18

Notes :
UNC Threads are standards for low strength materials, but UNF threads are usually available on special order.
Dimension C should be measured at point 1/2L from the threaded end.
